6AQ5

Sensibly equivalent to:
BPM04 CV1862 EL90 N727

Extras ▼

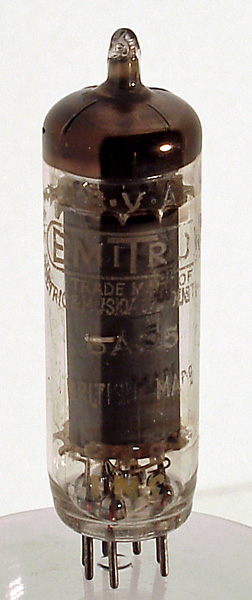

The 6AQ5 ia a small audio output beam tetrode valve capable of 4.5 Watts in a single ended configuration.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 58 mm tall.
References: Datasheet & 1040. Type 6AQ5 was first introduced in 1950.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k,bp
h
h
a
g2
g1



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
gm
Pout
6.3
0.45
250
250
-12.5
45
4.1
4.5W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 27, 2013.
shape:thin.glass.tube construction:all.glass type:beam.tetrode age:1940.1950 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.k.bp pin:3.h pin:4.h pin:5.a pin:6.g2 pin:7.g1
