6AH6

Sensibly equivalent to:
CV2521

Extras ▼



Sources describe type 6AH6 as a screened pentode whose characteristics and ratings are identical to those of the 6AC7 (and 6AJ7) except for size and that Ra is only 500kΩ rather than 1MΩ. This may be due to the absence of the 6AC7's metal envelope. As in type 6AC7, g3 has its own pin.
We regard the 6AH6 as an all-glass miniature version of the 6AC7 and intended for similar applications. Wideband video amplification being an example. In any compact valve with a substantial heater rating it is necessary to ensure that the grid wires do not become too hot. The use of copper, and particularly the provision of thick copper side-rods helps to conduct heat away from hotspots.

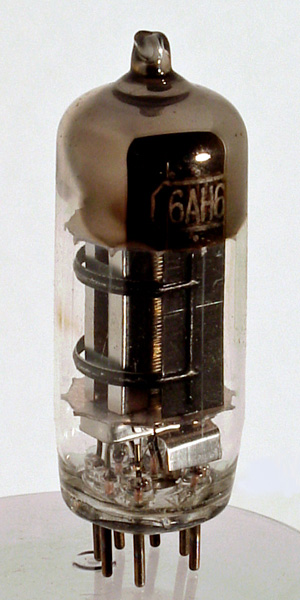

The anode is seen in the picture as a black plate on either side of the central assembly. The two plates are linked by the two black straps. The bright metal structure is the screening plates and the copper grids are clearly visible.
RCA say the 6BH6 is for use at IF and the first stages of video amplification in TV receivers.
We have seen in some literature that this is a special quality version of the 6AC7.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 46 mm tall.
Reference: Datasheet & 4040. Type 6AH6 was first introduced in 1947.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
g3
h
h
a
g2
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
mAa
ra
gm
6.3
0.45
150
12.5
3600
11
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 28, 2013.
