GS10C/S

Sensibly equivalent to:
CV2325
See also:
Gas Filled Counting Tubes

Extras ▼

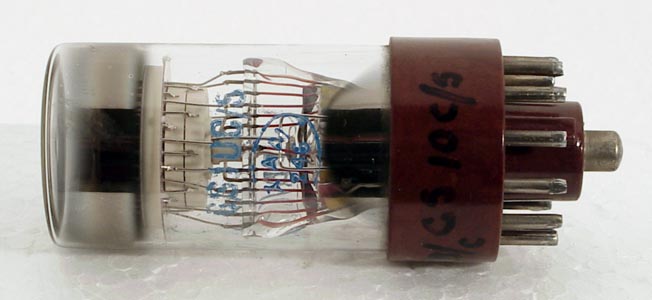

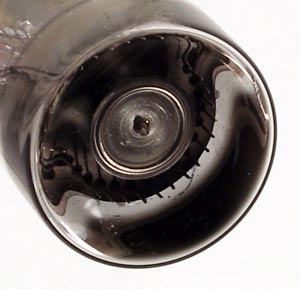

The GS10C/S counter/indicator is a cold cathode device that is viewed through an end window.
The discharge is passed from cathode to cathode by guide wires and after 10 pulses an output pulse is generated.

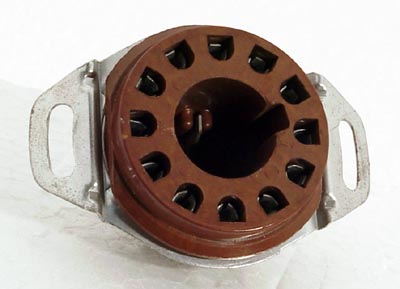

The special base.
The end window envelope is 30 mm in diameter and, excluding the special base pins, is 68 mm tall.
References: Datasheet. Type GS10C/S was first introduced in 1959.



Absolute Maximum Operating Conditions
Indicator
Vh
Ah
-
-
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 13, 2012.
