3CX3000A7



Extras ▼

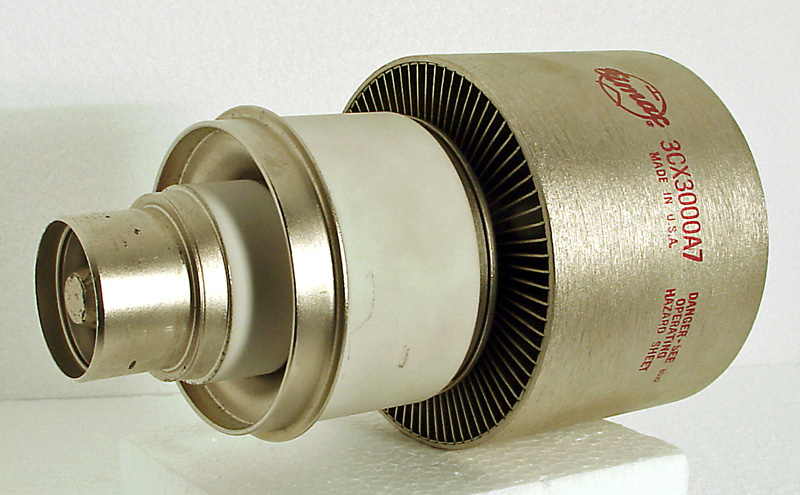

The 3CX3000A7 is a ceramic disc seal triode is designed for industrial heating and transmitter use.
When in operation the ceramic is seen to glow pink. It is directly heated and the grid is the top ring. The output power is several kilowatts of RF.
Data-sheet courtesy of G8WRB.
The co-axial envelope is 100 mm in diameter and, including the base rings, is 210 mm tall.
Reference: Data-sheet.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
7.5
51.5
