UU9

Sensibly equivalent to:
66KU 6BT4 CV1855 EZ40 U150 U718

Extras ▼



The UU9 full wave rectifier offers a respectable output current of 90 mA, sufficient for most domestic apparatus.
The maximum reservoir capacitor, a measure of the peak current rating, was 50 µF. The minimum effective series resistance is 300 Ohms.

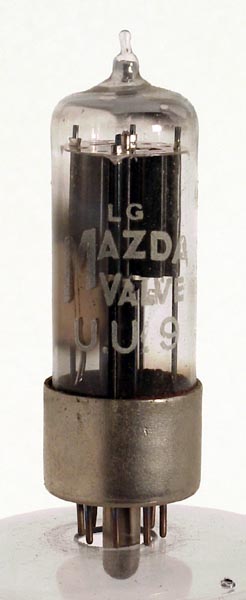

The thin glass tube envelope is 20 mm in diameter and, excluding the B8A base pins, is 61 mm tall.
References: 1040. Type UU9 was first introduced in 1948.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a(2)
ic
ic
ic
a(1)
k
h



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.58
350
90
