6AG5

Sensibly equivalent to:
6186 6J3P CV848 EF96

Extras ▼

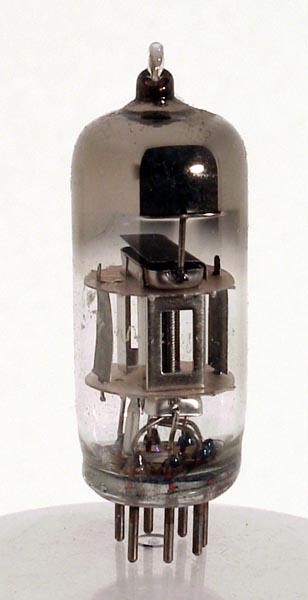

The 6AG5 is a low power amplifier beam tetrode that features a low anode to cathode capacitance and has two small anode plates at a wide separation from the cathode. It can operate as an RF or IF amplifier with a maximum operating frequency of 400 MHz.
The thin glass tube envelope is 17 mm in diameter and excluding the B7G base pins the valve is 47 mm long.
References: Data-sheet, Data & 1040.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2
k



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
150
-1.8
7
2
0.8M
5
Thanks to Frank Philipse for supplying the above PDF datasheet.
