6F14

Sensibly equivalent to:
CV1919

Extras ▼



The 6F14 is an RF amplifying pentode for operating in a parallel (fixed voltage) environment. Such a device would be used for radio receivers and VHF television.

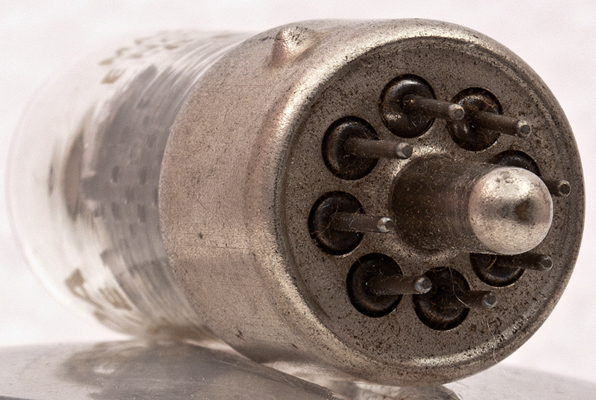

Mazda used a locating spigot for the B8A base, Mullard moved to a locating pip for the B8A valves.

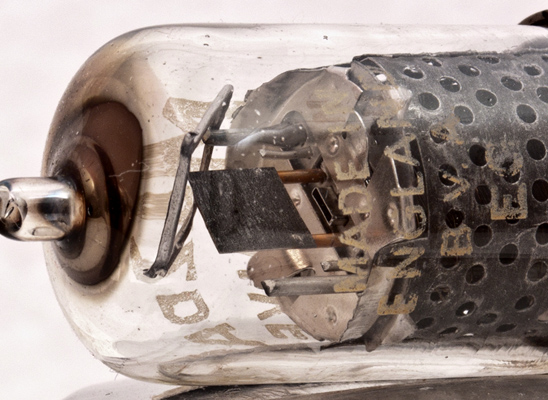

The control grid copper supports are topped off with a cooling fin. Inside the metal screen can just be seen the three concentric wire grids.

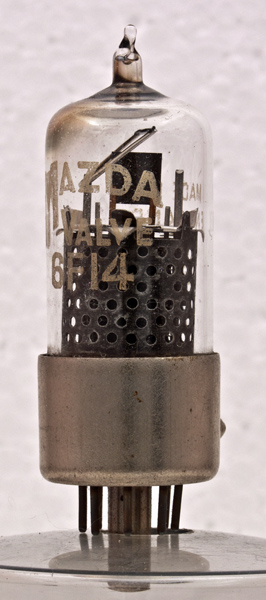

The thin glass tube envelope is 20 mm in diameter and, excluding the B8A base pins and spigot is 55 mm tall.
References: 1040. Type 6F14 was first introduced in 1948.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a
s
g3
g2
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
6.3
0.35
135
135
-1.3
27
6.5
10.0
Updated June 13, 2012.
