QS75/20

Sensibly equivalent to:
75B1 CV284 CV5083 GTR75M

Extras ▼



The QS75/20 voltage stabiliser will strike at 110 Volts and for currents between 2 and 20 mA will keep the output voltage constant at 75 Volts to within 5 Volts.
Keith Watt reports that the GEC CV284's that he owns have the separate ignition electrode. The GEC/Marconi data-sheet says that their stabilisers do not have the ignition electrode. Details ignition electrodes can be found on the attached data-sheet.

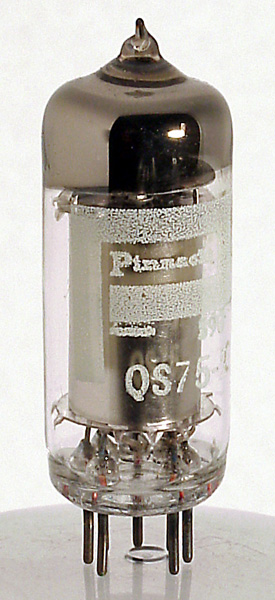

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 45 mm tall.
Reference: Data-sheet. Type QS75/20 was first introduced in 1954.



Pin Connections
B7G
1
2
3
4
5
6
7
k
k
k
pa
a
a
a



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
75
20
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 30, 2019.
shape:thin.glass.tube construction:all.glass type:voltage.stabiliser age:1950.1960 base:b7g pins:7 pin:1.k pin:2.k pin:3.k pin:4.pa pin:5.a pin:6.a pin:7.a
