9D7

Sensibly equivalent^¶ to:

CV5409

Extras ▼

Brimar G8LSD Valve Collection

The 9D7 is a variable μ pentode. Brimar do not give a designated frequency range in their literature. As variable μ pentodes are used in AGC amplification systems, this suggests a role in IF amplification at up to 10.7 MHz.

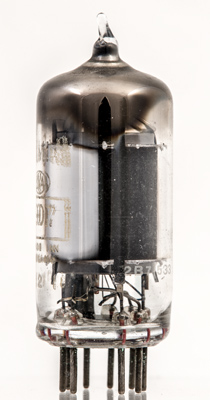

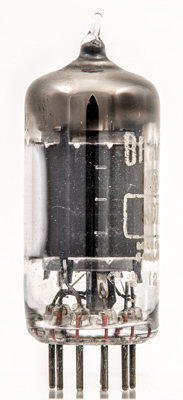

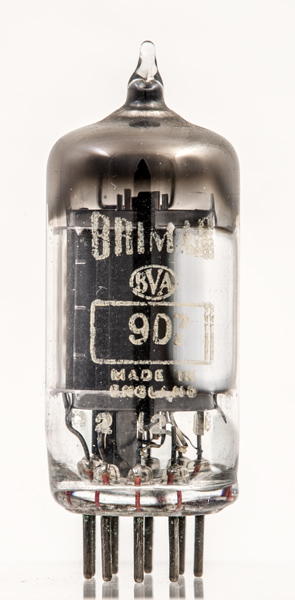

The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 47 mm tall.

References: Data-sheet, ³⁰⁰² & ¹⁰⁴⁰. Type 9D7 was first introduced in 1958.

Pin Connections

B9A	1	2	3	4	5	6	7	8	9
	k	g1	k	h	h	s	a	g2	g3

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	mAa	gm
	6.3	0.3	250	100	10	8.4

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated January 31, 2013.

shape:thin.glass.tube construction:all.glass type:pentode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.k pin:2.g1 pin:3.k pin:4.h pin:5.h pin:6.s pin:7.a pin:8.g2 pin:9.g3
