6H6GTY


See also:
The 6H6 Diode Family - The GTY Suffix

Extras ▼

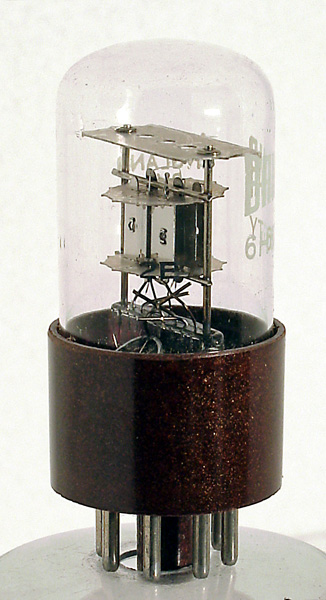

The metal and GT versions of the 6H6 are smaller than this GTY variant of this double diode.
This exhibit has the older style pinch construction that adds to the length of the envelope. The diodes are low voltage low current signal rectifiers and not suitable for power supply service. The low current is reflected in the low heater power.
The wide glass tube envelope is 28 mm in diameter and excluding IO base pins the valve is 58 mm long.
References: Datasheet, 1040 & 1043. Type 6H6GTY was first introduced in 1936.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
k(2)
a(1)
-
h
k



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
150
8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 31, 2013.
