2X2A

Sensibly equivalent^¶ to:

2B21 2X2 879 CV597

Extras ▼

RCA G8LSD Valve Collection

The 2X2A is an EHT half wave rectifier. The values given are for the 2X2 and we believe the 'A' variant to be the same electrically but of rugged construction to withstand shock and vibration.

The 2.5 volt heater indicates that it would be powered by a special heater winding of high insulation. Such a valve would have found application in oscilloscopes, Radar displays or in multiplier chains for higher voltages.

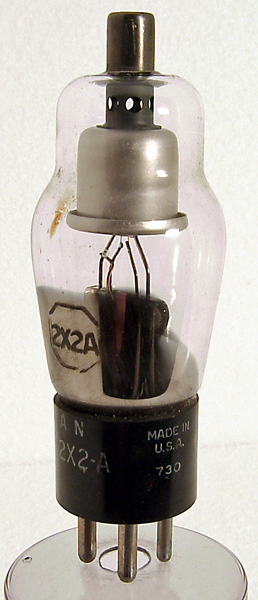

The classic envelope is 36 mm in diameter and, excluding the UX4 base pins, is 97 mm tall.

References: Data-sheet, ³⁰⁰² & ¹⁰⁴³. Type 2X2A was first introduced in 1949. See also 1949 adverts.

Pin Connections

UX4	1	2	3	4	tc
	h	nc	nc	h,k	a

Absolute Maximum Operating Conditions^¶

Rectifier	Vh	Ah	Va	mAa
	2.5	1.75	4,500	7.5

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated January 03, 2022.
