CV2797

Sensibly equivalent to:
5894/C178A 5894A QQV06-40A
See also:
Mullard TX Valves Advert

Extras ▼

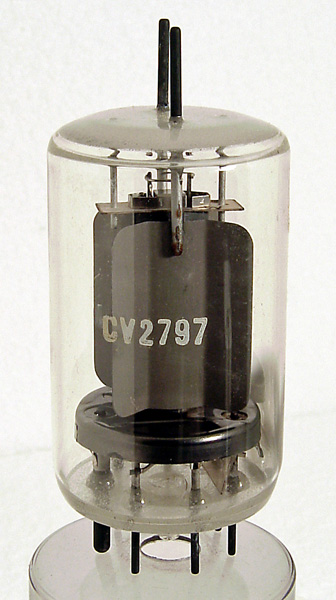

This is an elegant valve well designed for its purpose of medium power RF amplification. Within the envelope are two beam tetrodes with a maximum anode dissipation of 40w. The CV specification describes the valve as a robust version of the QQV06-40.
Following the European pattern, a central flat cathode is surrounded by a split control grid (one half per valve), a common screen grid is wound next. The the tops of the beam forming plates can be seen. The anodes are finned for good heat dissipation and clearly separated from the central structures, the anodes are brought out to pin like top caps.
The heater is centre tapped to allow for 12.6 or 6.3 volt operation.
In use the designer would take care to keep the grid circuitry below the chassis with the anodes being connected to circuits remote from the input. This way undesirable feedback could be avoided.
The european design of internal capacitors for neutralisation is incorporated. Such neutralisation prevented parasitic oscillations during operation in a well designed layout.
The wide glass tube envelope is 40 mm in diameter and, excluding the B7A base pins, is 72 mm tall.
References: Datasheet & 1040.



Pin Connections
B7A
1
2
3
4
5
6
7
tc
tc
h
g1(2)
g2
k,bp
hct
g1
h
a
a(2)



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pdriv
Pout
Pdiss
freq
f.max
6.3
1.8
600
250
-80
200
18
7
3W
90
40W
275
486
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 13, 2013.
