CV31

Sensibly equivalent to:
FW4-800 U20

Extras ▼

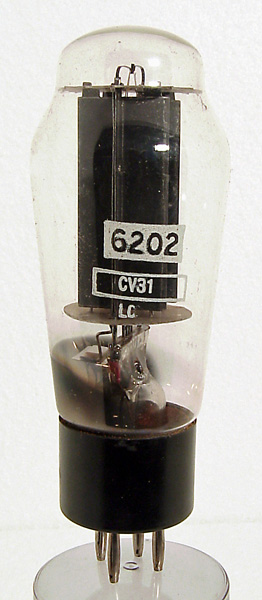

The CV31 is a directly heated full wave rectifier, the commercial prototype was the U20 from M-OV.
The maximum reservoir capacitor is 4 µF and the minimum series resistance has to be 150 Ohms.
The classic envelope is 47 mm in diameter and, excluding the B4 base pins, is 116 mm tall.
References: Datasheet & 1043.



Pin Connections
B4
1
2
3
4
a(1)
a(2)
f
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
3.0
850
125
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 08, 2016.
shape:classic construction:pinch type:rectifier.fw age:1930.1940 base:b4 heater:4.0v pins:4 pin:1.a(1) pin:2.a(2) pin:3.f pin:4.f
