AU5

Sensibly equivalent to:
19G/12 CV1111 R11 U27 V1907 VU111
See also:
Pioneers of HT Rectifiers - Rectifiers for Pulse Modulators

Extras ▼



The AU5 is directly equivalent to the type VU111 which is also known as a CV1111. The CV or Common Valve type numbers replaced the classifications of valves for the armed services in the early 1940s, prior to this each service had its own type numbers.
This high voltage high power half wave rectifier can deliver 125 watts. A pair producing 250 watts could feed a high voltage low current transmitter output stage. The alternative use is to feed a pulse modulator.

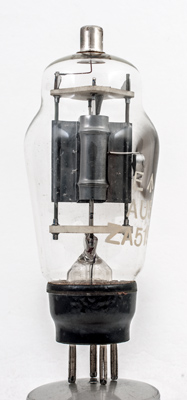

The anode is blackened for better radiation properties. The main heat is generated on the sides facing the filaments and here there are fixed the side flanges that provide extra cooling and fixings to the support rods.

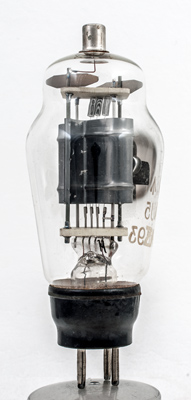

The anode is separated from the six vertical filament strands by a 5 mm gap, and is supported on substantial ceramic insulators.

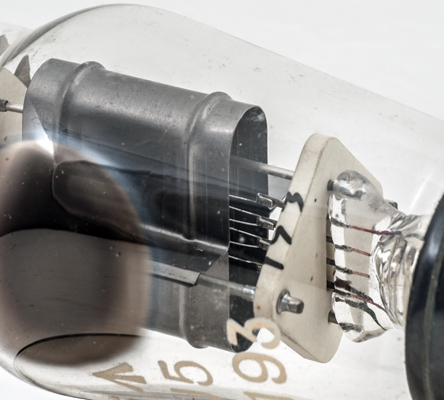

The pinch and lower ceramic insulator. The filament strands can be seen to be oxide coated.

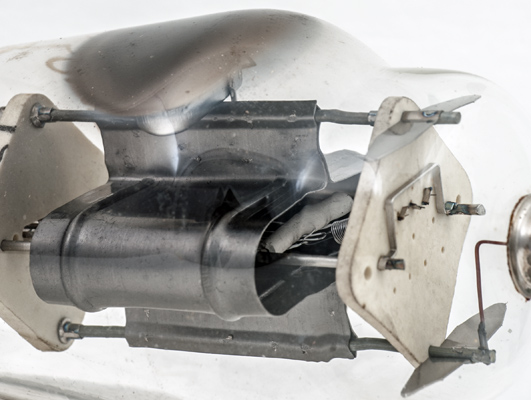

The top of the anode contains a ceramic rod over which the filaments pass before connecting to the tensioning springs that are mounted off centre. In this way the filaments keep to the centre of the anode space.

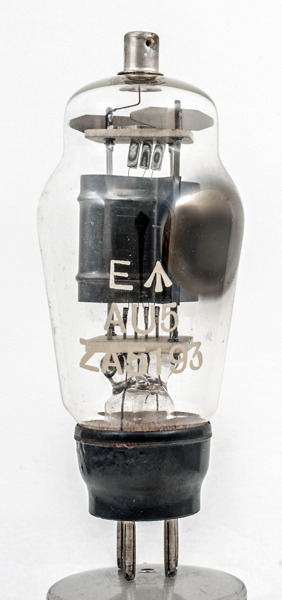

The classic envelope is 54 mm in diameter and excluding the B4 base pins, is 123 mm tall.
References: Data-sheet & 1043.



Pin Connections
B4
1
2
3
4
tc
-
-
f
f
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
4.0
1.1
5,000
50
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 15, 2019.
shape:classic construction:pinch type:rectifier.hw age:1930.1940 base:b4 heater:4.0v pins:4 pin:1.- pin:2.- pin:3.f pin:4.f pin:tc.a
