CV1835

Sensibly equivalent to:
3B28 3B28 AX224 ESU103 GXU1 RR3-250

Extras ▼



The CV1835 is a half wave Xenon filled rectifier. The maximum Peak Inverse Voltage is rated at 5,000 Volts. Although the average rectified current is 500 mA the peak value can be as high as 2 Amps.

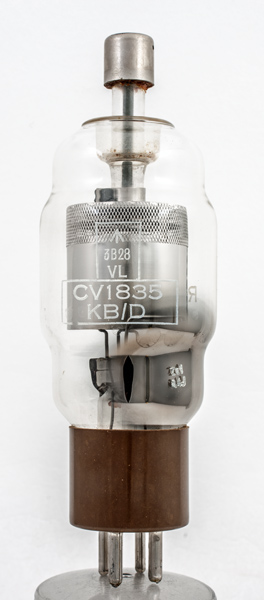

The CV1835 is also marked with the Mullard commercial Type of RR3-250. The 3B28 was the prototype for the CV1835 and this valve has that Type listed on the glass as well.

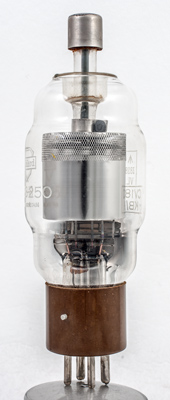

The outer cylinder is the shield and it is held in place by a collar around the glass stem that covers the anode lead from the top cap down into the shield. The locating pip for the bayonet base is clearly seen.

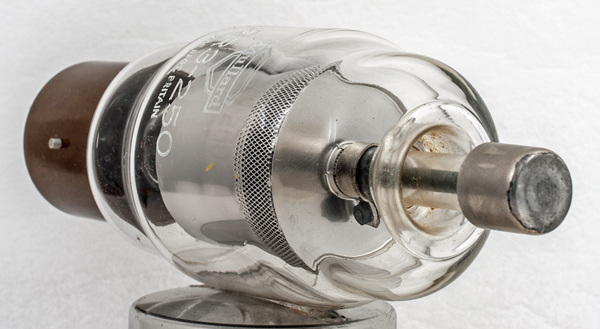

The anode end of the envelope with the re-entrant envelope to hold the shield collar at a minimum distance.

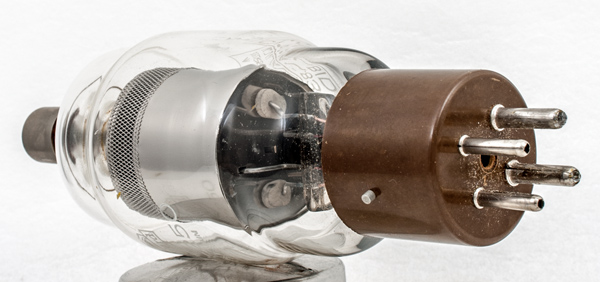

The base, pinch and filament connections passing into the shield through ceramic insulators.
The wide glass tube envelope is 51 mm in diameter and, excluding the UX4 base pins, is 139 mm tall.
Reference: Datasheet.



Pin Connections
UX4
1
2
3
4
tc
f
-
-
f
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
2.5
5.0
3500
500
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated August 22, 2018.
shape:wide.glass.tube construction:pinch type:rectifier.hw age:1950.1960 base:ux4 heater:2.5v pins:4 pin:1.f pin:2.- pin:3.- pin:4.f pin:tc.a
