CV2858

Sensibly equivalent to:
3B24WA 3B24W CV4021

Extras ▼

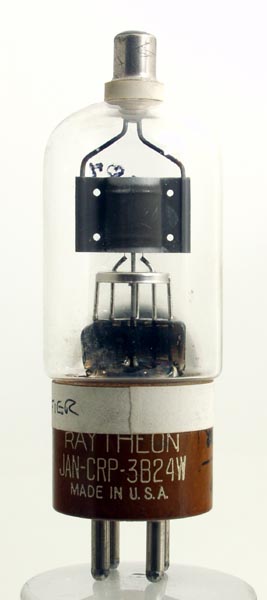

The CV2858 is a high voltage half wave rectifier with a moisture stable base. See also 3B24W.
The wide glass tube envelope is 35 mm in diameter and, excluding the UX4 base pins, is 102 mm tall.
Reference: datasheet.



Pin Connections
UX4
1
2
3
4
tc
f(tap)
f
-
f
a



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
mAa
5.0
3.0
60
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 13, 2013.
