Sensibly equivalent to:
F/5654 M8142 QS1213 VX8142
See also:
SQ Voltage reference tubes - Mullard Special Quality Valves - General Data
Extras ▼

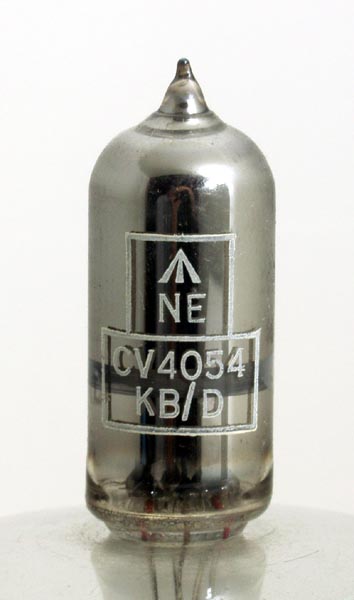

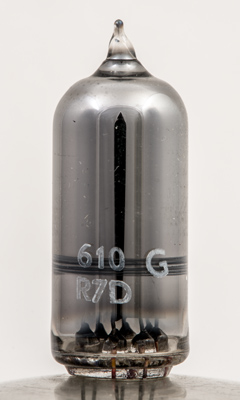

The CV4054 is a miniature voltage reference tube based on the VX8142, the commercial version is the Mullard special quality type M8142. The CV4048 is the same valve but with conventional base pins. The optimum current to run the tube is 6 mA. This makes it suitable as a reference voltage for a stabilised power supply.

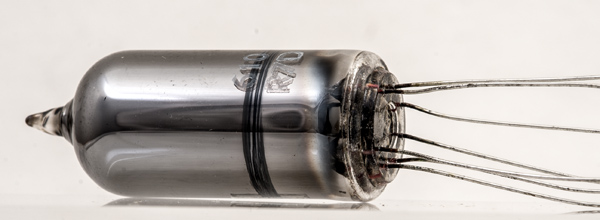

Mullard brought out two special quality versions of this stabiliser. The new designs were designed to operate in the presence of vibration whilst maintaining a long life and were aimed at industrial and military applications. Type M8098 fitted with a B7G base and type M8142 with flying leads for direct soldering into circuit.
The thin glass tube envelope is 17 mm in diameter and, excluding the leads is 46 mm tall.
References: Data-sheet & 1040. Type CV4054 was first introduced in 1962. See also 1962 adverts.


Absolute Maximum Operating Conditions
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 07, 2022.
