6E5

Sensibly equivalent to:
CV1906 VT-215
See also:
Tuning Indicators

Extras ▼

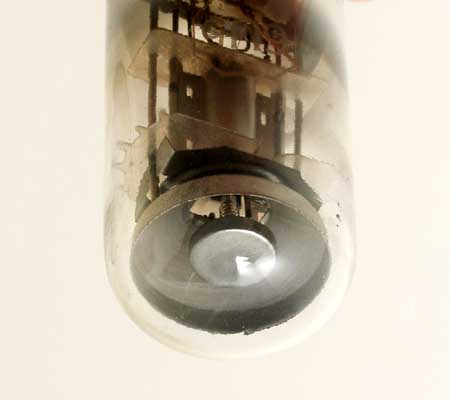

The magic eye class of tuning indicator originated in the US and Type 6E5 was one of the earliest types. Almost all European types are more-or-less directly copied from it.
Early specimens, such as 6E5, had short lives due to 'burning' of the fluorescent target and poisoning of the cathode coating in the centre of the target area. This was later cured by enclosing the display part of the cathode within the spiral of a small space charge grid.
The display changes from open to closed for a 7.5 Volt change on the grid.
The end window envelope is 28 mm in diameter and, excluding the UX6 base pins, is 85 mm tall.
References: Data-sheet, 3002 & 1043. Type 6E5 was first introduced in 1935. See also 1935 adverts.



Pin Connections
UX6
1
2
3
4
5
6
h
a
g1
t
k
h



Absolute Maximum Operating Conditions
CRT
Vh
Ah
Va
mAa
6.3
0.3
250
2.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
