6U5

Sensibly equivalent to:
63ME 6G5 6H5 6U5/6G5 CV504 VT-98 Y63
See also:
Tuning Indicators

Extras ▼

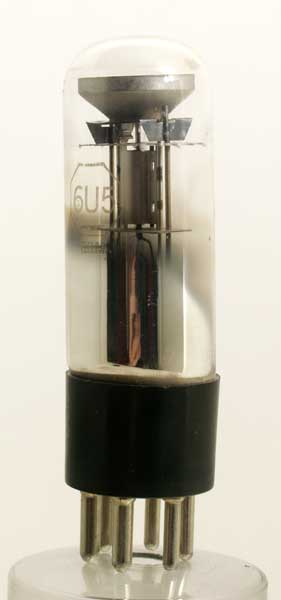

The 6U5 = 6G5 is an American Magic Eye tuning indicator and its construction follows the normal pattern. The electrode assembly is mounted centrally in the envelope.
The wide glass tube envelope is 28 mm in diameter and, excluding the UX6 base pins, is 85 mm tall.
References: Datasheet, 3002, 1043 & 1040. Type 6U5 was first introduced in 1937.



Pin Connections
UX6
1
2
3
4
5
6
h
a
g1
t
k
h



Absolute Maximum Operating Conditions
CRT
Vh
Ah
Va
mAa
6.3
0.3
250
4.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 02, 2013.
