KF35



Extras ▼

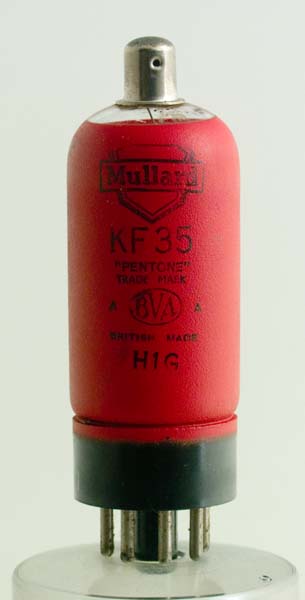

The KF35 is a variable μ pentode for battery radio equipment. The KF35 would have been used for mainly IF amplification and the gain would be controlled by the AGC line altering the negative grid bias. The control grid was taken to the top cap to minimise the interaction of the grid and anode circuits.
The envelope is 30 mm in diameter and, excluding the IO base pins, is 80 mm tall.
References: 1951 Datasheet & 1040. Type KF35 was first introduced in 1946.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
f+
a
g2
g3
-
f-
-
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
2.0
0.05
120
60
-1.5
1.45
0.5
1.5M
1.08
PDF scanned from an original document held by the museum
