MP-Pen

Sensibly equivalent to:
7A2 A70B AC/Pen APP4A MKT4/5 Pen4VA
See also:
Cossor Mica Bridge Mounting Advert

Extras ▼



The MP-Pen was made in both B5 and B7 base versions, and was manufactured from 1931 in B5 and 1934 in B7. This popular type of audio output valve had many equivalents.
The given parameters include a recommended cathode resistor or 450Ω and a load resistance of 1,000Ω.

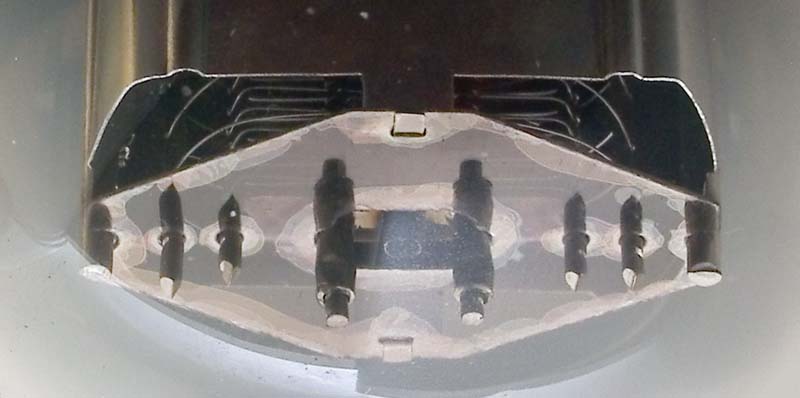

When seen from the top and through the top mica the spacing of the wire grids can be seen.

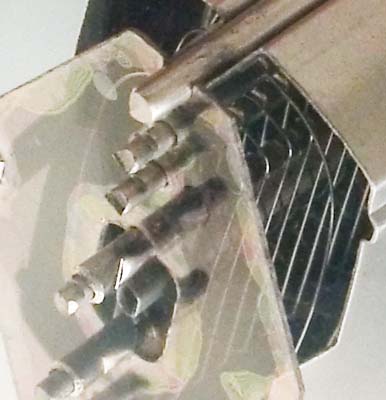

In this oblique view the notched grid support rods can be seen. The central coated cathode tube is in the centre with the control grid seen as a helix close to it. The screen grid is flattened so as to be parallel to the anode across the broad face. The final lazy helix is the suppressor grid.

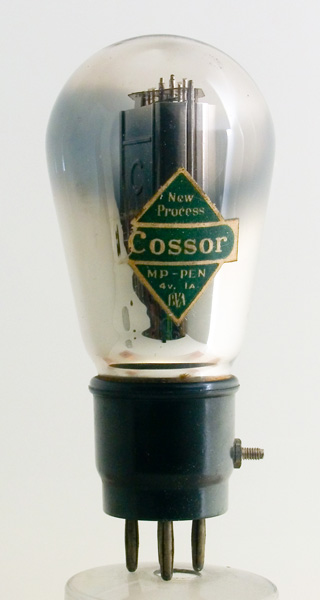

The balloon envelope is 54 mm in diameter and, excluding the B5 base pins, is 110 mm tall.
References: Data-sheet & 1040. Type MP-Pen was first introduced in 1931. See also 1931 adverts.



Pin Connections
B5
1
2
3
4
5
sc
a
g1
h
h
k
g2



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
D
4.0
1.0
250
250
-16
30
6.0
3.5
3.5W
8%
Thanks to Frank Philipse for supplying the above PDF datasheet.
