C70D

Sensibly equivalent to:
7D6 Pen383

Extras ▼

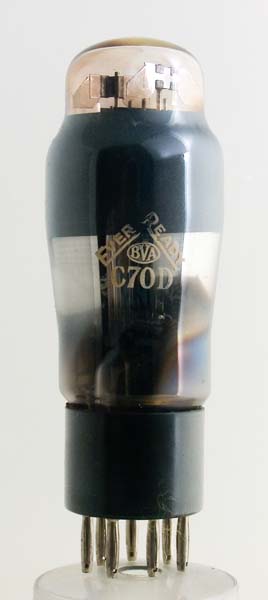

The C70D is Ever Ready's branding of the Mullard Pen36C from 1935. The valve is an audio output pentode designed for use with mains transformerless receivers suitable for either AC or DC mains.
Ever Ready is best remembered for the manufacture of radio batteries but also made and sold radio receivers. They were never a valve manufacturer, but purchased their valves exclusively from Mullard and sold them for use in their own sets.
The classic envelope is 44 mm in diameter and, excluding the B7 base pins, is 113 mm tall.
References: Datasheet & 1043.



Pin Connections
B7
1
2
3
4
5
6
7
-
g1
g2
h
h
k,g3,m
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
33
0.2
200
200
-5.5
45
6
35,000
8.0
4W
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
