UX281

Sensibly equivalent to:
281 AC81

Extras ▼

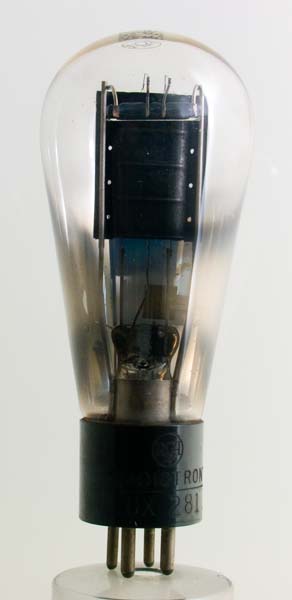

This American half wave rectifier features a directly heated oxide filament.

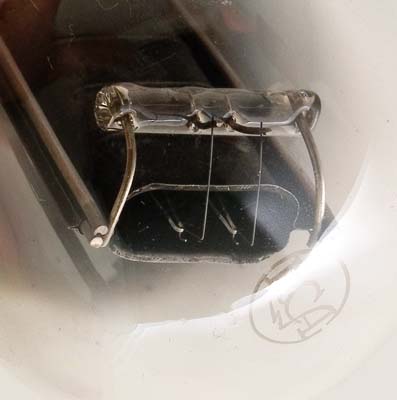

From the top the ribbon coated filaments can be seen. Each inverted 'V' having its own tensioning spring. The anode is carburized for greater heat radiation.
The balloon envelope is 60 mm in diameter and, excluding the UX4 base pins, is 133 mm tall.
Reference: 3002. Type UX281 was first introduced in 1928.



Pin Connections
UX4
1
2
3
4
f
a
-
f



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
7.5
1.2
Updated January 18, 2013.
