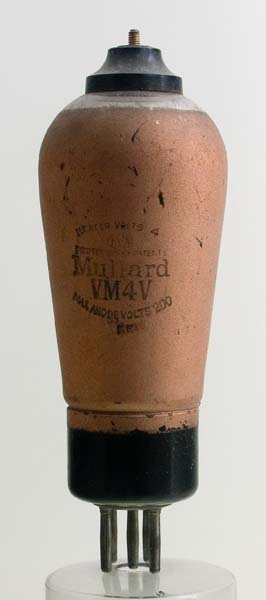

The VM4V is a battery variable μ RF screened grid valve for use in broadcast receivers.

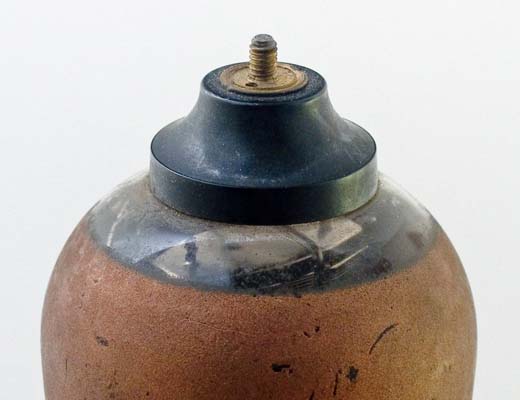

The top cap follows the early 1930s pattern of a screw down connector. In this exhibit the insulated cap is missing.The balloon envelope is 49 mm in diameter, and excluding the B5 base pins is 120 mm tall.Reference: 1043. Type VM4V was first introduced in 1932. See also 1932 adverts. |
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm |
| 4.0 | 0.1 | 200 | 100 | -1.5 | 6.0 | - | 300,000 | 1.2 |
|
Updated February 08, 2022.
|
|
