42 @ The Valve Museum

▼ Menu

Home Search Indexes Equivalents Articles Adverts & Boxes Timeline Collections Donate Contact

42

Sensibly equivalent^¶ to:

42E CV609

See also:

CV609 short entry

Extras ▼

General Electric G8LSD Valve Collection Other 42 exhibits

The 42 is an audio output pentode, with a low output rating, but when used in push pull a pair could deliver 18.5 Watts in class AB2.

Also on a UX6 base is the 2.5 Volt 2A5 that is electrically equal to the type 42. The Type 6F6 is electrically identical but on an IO base.

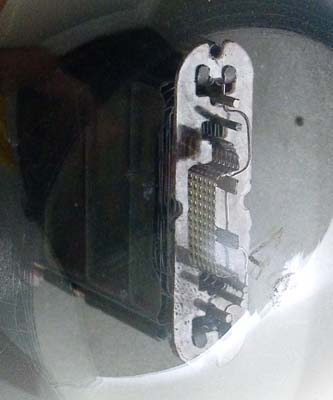

The construction of the electrodes is shown above. Note the control grid cooling fin sitting above the top mica.

See also 6F6 the octal version of this valve.

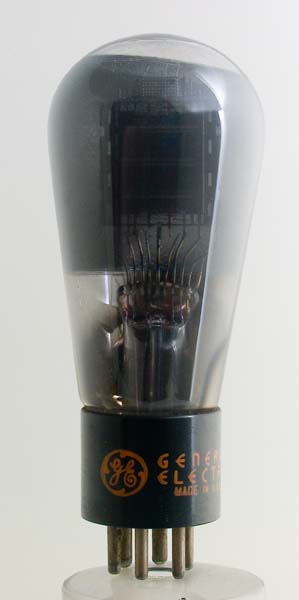

The balloon envelope is 53 mm in diameter and, excluding the UX6 base pins, is 118 mm tall.

References: Data-sheet & ¹⁰⁴⁰. Type 42 was first introduced in 1936. See also 1936 adverts.

Pin Connections

UX6	1	2	3	4	5	6
	h	a	g2	g1	k	h

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm	Pout
	6.3	0.7	250	250	-16.5	34	6.5	80k	2.5	3.2W

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated April 06, 2015.

Return to Main Index
