Sensibly equivalent to:- 108C1 - CV1833 - QS1208 - 6074 - G108/1K - 108C1 - CV1833



This exhibit was last updated on 28 February 2013

about

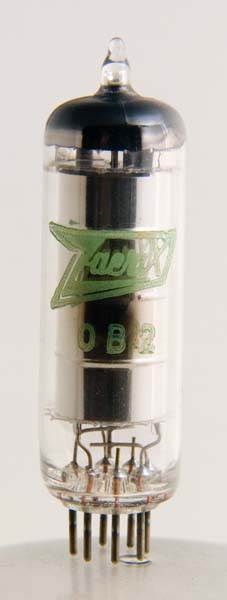

The 0B2 is a B7G voltage stabilizer. These devices were made obsolete by the Zener diode.
The regulation of the 0B2 was 3.5 Volts for currents of between 5 and 30 mA. So the voltage across this tube in service would have been held at between 106 and 110 volts. The tube strikes at a voltage of 133 volts.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 57 mm tall.
References: Datasheet & 1040. Type 0B2 was first introduced in 1948.

Pin Connections
B7G
1
2
3
4
5
6
7
a
k
ic
k
a
ic
k

Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
108
30

Thanks to Frank Philipse for supplying the above PDF datasheet
