DL96

Sensibly equivalent to:
1P1 3C4 N25

Extras ▼

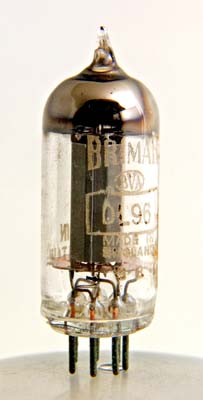

The DL96 is a low consumption audio output valve and dates from the 1950s. The audio output is low at 200 mW but considering the low filament power it is quite remarkable.

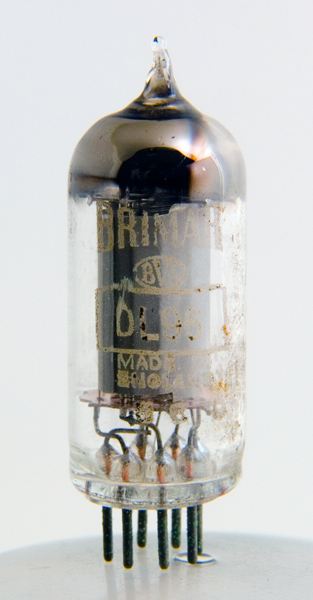

Seen from the side the anode is revealed as an oval cylinder.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 45 mm tall.
References: Datasheet, 3002 & 1040. Type DL96 was first introduced in 1953.



Pin Connections
B7G
1
2
3
4
5
6
7
f-
a
g2
-
fct
g1
f+



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
1.4
0.05
85
85
-5.2
5
0.9
150,000
1.4
0.2
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 04, 2013.
