CV2133

Sensibly equivalent to:
90CG GS50

Extras ▼



The CV2133 photocell is a gas filled device for enhanced sensitivity.
The normal anode voltage would be in the order of 90 Volts with 100 Volts as a maximum. The cathode current is 2 μA maximum and the sensitivity is 125 μA/Lumen.

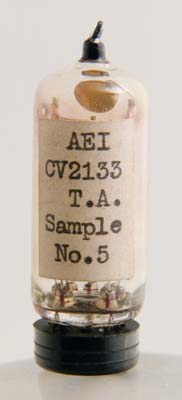

The identification label marks this as a pre-production type approval sample.
See CV2133 for more details.

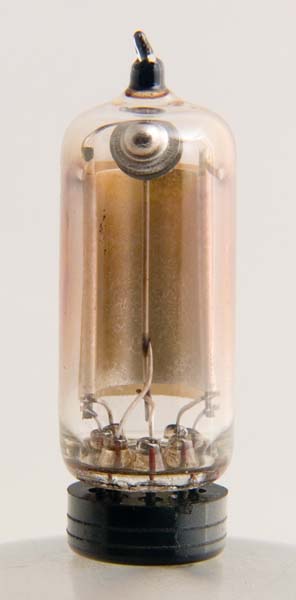

The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 46 mm tall.
Reference: Data-sheet.



Pin Connections
B7G
1
2
3
4
5
6
7
nc
k
nc
a
nc
k
nc



Absolute Maximum Operating Conditions
Light Control
Vh
Ah
Va
nc
nc
90
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 05, 2022.
