N17

Sensibly equivalent^¶ to:

1P10 3S4 CV820 DL92

See also:

Mazda Miniature Valves Advert

Extras ▼

Marconi G8LSD Valve Collection Other N17 exhibits

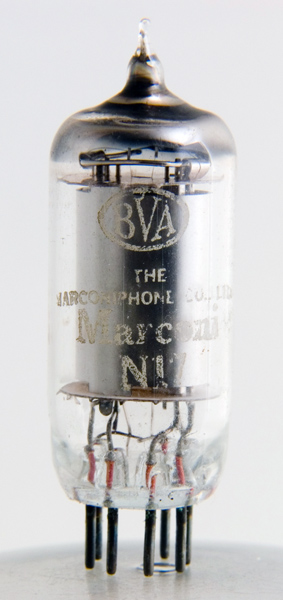

The N17 is an audio output pentode designed for battery portable radio receivers in the early post war years. The output power is very small at just over a quarter of a Watt so a high efficiency loud speaker would be used.

The thin glass tube envelope is 17 mm in diameter and excluding the B7G base pins it is 44 mm in length.

References: Data-sheet & ¹⁰⁴⁰. Type N17 was first introduced in 1949. See also 1949 adverts.

Pin Connections

B7G	1	2	3	4	5	6	7
	f	a	g1	g2	hct,g3	a	f+

Absolute Maximum Operating Conditions^¶

Pentode	Vh	Ah	Va	Vs	Vg	mAa	mAs	ra	gm	Pout	D
	1.4	0.1	90	67.5	-7	7.4	1.4	0.1M	1.58	0.27	12%

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated January 27, 2013.
