6AK5W

Sensibly equivalent to:
5654W 5654 6096 CV2877 E95F M8100

Extras ▼

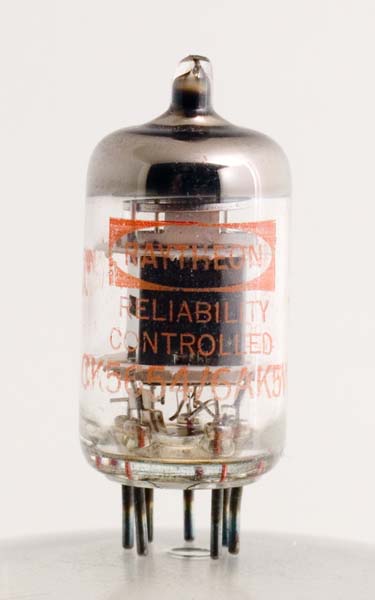

The 6AK5W is a physically small amplifier pentode for use as a low noise amplifier at VHF. The W suffix is there to denote a special quality variant of the basic 6AK5.
The side view of the anode box shows the fixing flange.
The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins, is 35 mm tall.
References: Data-sheet & 3002. Type 6AK5W was first introduced in 1954. See also 1954 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.175
180
120
-2
7.2
2.4
0.7M
5.1
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 04, 2013.
