CV416Sensibly equivalent¶ to:6F17 CV4040 VX6055
|
|
|

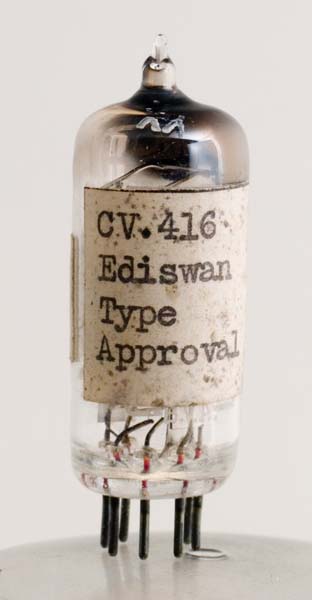

The CV416 is the commercial 6F17 beam tetrode produced to the UK Government specification based on the VX6055.This exhibit is clearly labelled as a sample for the Government to test prior to certifying that the product meets the design specification and thus can be made and labelled as a CV416. The design purpose is for RF and pulse voltage amplification and was used in television receivers but RADAR is another possible application as would be test equipment.![](../pics/aaa0869a.jpg)

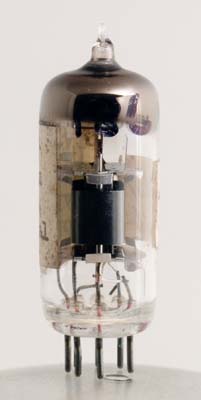

Seen from the side the rounded anode box can be seen.See also The S6F17 which is a special quality version of the basic 6F17 design.The thin glass tube envelope is 17 mm in diameter, and excluding the B7G base pins, is 47 mm tall.References: Data-sheet & 1040. Type CV416 was first introduced in 1948. See also 1948 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | ![](../static/key.gif) g1 | k | h | h | a | bp | g2 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | gm | ![](../static/pdflogo.gif)
| 6.3 | 0.3 | 200 | 200 | -11 | 17 | 3 | 4 |
|
