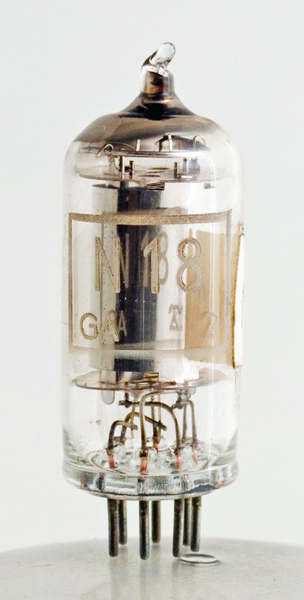

The N18 (direct equivalent = 3Q4) is a miniature dry battery pentode that was designed for portable radio receiver use. The output of 270mW maximum would only drive a small efficient loudspeaker, not hi-fi.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 44 mm tall.
References: Data-sheet, 3002 & 1040. Type N18 was first introduced in 1950. See also 1950 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
f-
a
g1
g2
fct,g3
a
f+



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
1.4
0.1
90
90
-4.5
9.5
2.1
100,000
2.15
0.27
7%
Thanks to Frank Philipse for supplying the above PDF datasheet.
