KT81

Sensibly equivalent to:
7C5
See also:
Olympia Show 1947

Extras ▼



The KT81 is the first M-OV kinkless tetrode audio power valve with a pressed glass foot. We can not find details of how it performed in the market place, but it was not a valve produced for many years. The KT81 appeared in 1947 and by 1951 this valve was being described as an obsolescent Type.

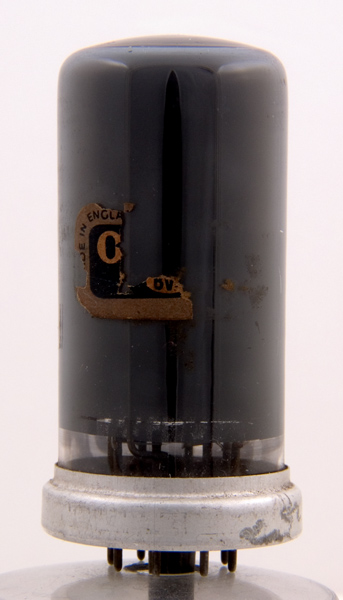

Produced by M-OV this example is branded Osram and our other KT81 exhibit is branded Marconi.

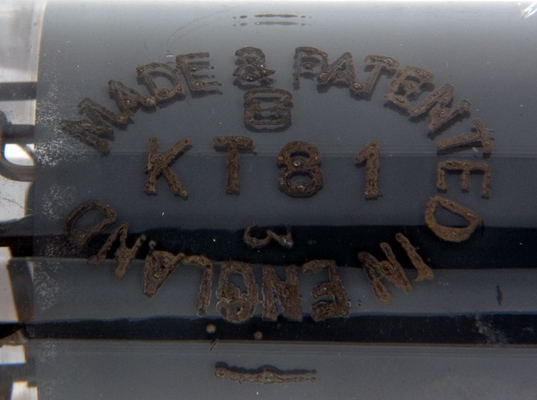

The detail photograph shows the M-OV identification on the envelope.
The wide glass tube envelope is 31 mm in diameter and, excluding the B8B base pins, is 68 mm tall.
References: 4018 & 1040. Type KT81 was first introduced in 1947.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
g2
ic
ic
g1
k
h



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
Pout
D
6.3
0.95
250
250
-4.4
40
7.5
10.8
4.3W
8%
