CV422

Sensibly equivalent^¶ to:

QS108/45 VX371

Extras ▼

G8LSD Valve Collection

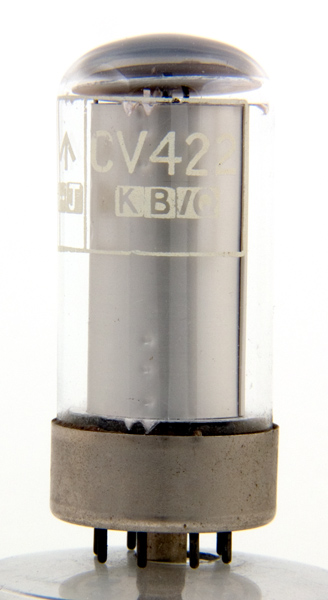

The CV422 is a voltage stabiliser with a separate priming anode. The prototype was the VX371.

The tube strikes at 120 Volts and regulates to 108 Volts for currents of 5 to 45 mA. Over this current range the voltage will vary by 5 volts, the 108 Volts occurs at a current of 25 mA.

The wide glass tube envelope is 28.4 mm in diameter, and excluding the B8B base pins is 64 mm tall.

References: Data-sheet.

Pin Connections

B8B	1	2	3	4	5	6	7	8
	a	a	p	k	k	k	k	k

Absolute Maximum Operating Conditions^¶

Stabiliser	Va	mAa
	108	25

Thanks to Frank Philipse for supplying the above PDF datasheet.

Updated October 06, 2013.

shape:wide.glass.tube construction:all.glass type:voltage.stabiliser age:1940.1950 base:b8b pins:8 pin:1.a pin:2.a pin:3.p pin:4.k pin:5.k pin:6.k pin:7.k pin:8.k
