62-TH

Sensibly equivalent to:
6C10 ECH42 X150

Extras ▼

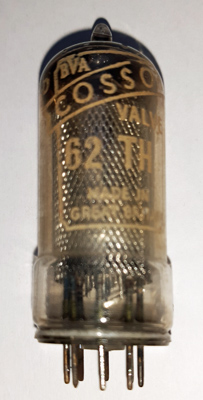

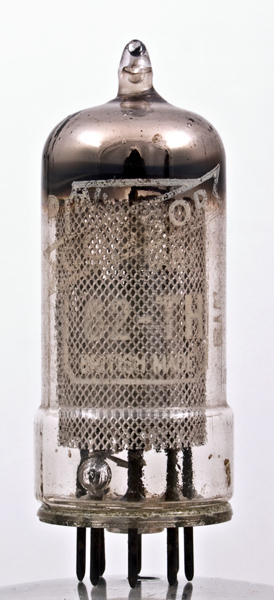

The 62-TH is a triode hexode mixer in an all glass envelope fitted with a B8A base.

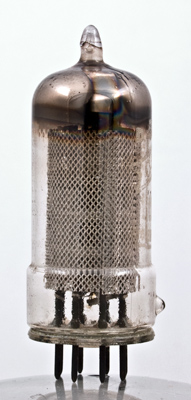

The screen obscures the electrodes. The glass moulded location pip is on the right.
The thin glass tube envelope is 20 mm in diameter, and excluding the B8A base pins is 53 mm tall.
References: Data-sheet & 3002. Type 62-TH was first introduced in 1950. See also 1950 adverts.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a
a(t)
g1(t),g3
g2,g4
g1
k
h



Absolute Maximum Operating Conditions
Hexode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.23
250
85
-2.0
3.2
3.75
1.0M
0.71
Thanks to Frank Philipse for supplying the above PDF datasheet.
