6N2P

Sensibly equivalent to:
6CC41

Extras ▼



The 6Н2П in Cyrillic has been rendered as 6N2P in latin for indexing. This is valve from the Soviet era in Russia and CCCP denotes a valve from the USSR. The construction is of a pair of triodes in the envelope.
R J Sutherland writes: Although the Soviet Union had a centrally planned economy, it still had different manufacturers each with its own distinctive logo which appeared on the products. In this case the valve was produced by the Voskhod factory.
The open box structure of this double triode.

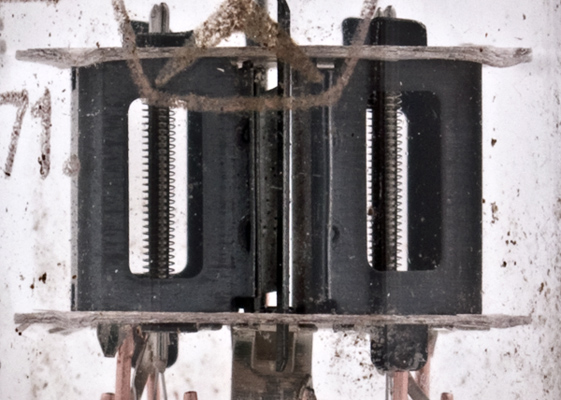

A close-up of the grid and indirectly heated cathode.

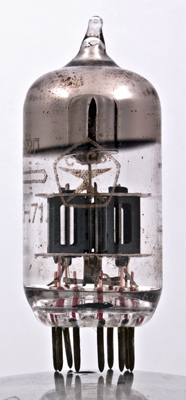

The thin glass tube envelope is 21 mm in diameter, and excluding the base pins is 48 mm tall.
References: 3002 & R J Sutherland. Type 6N2P was first introduced in 1954.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(1)
g1(1)
k(1)
h
h
a(2)
g1(2)
k(2)
s
