2D2

Sensibly equivalent to:
CV794
See also:
Mullard 2D4A or Philips KB2

Extras ▼

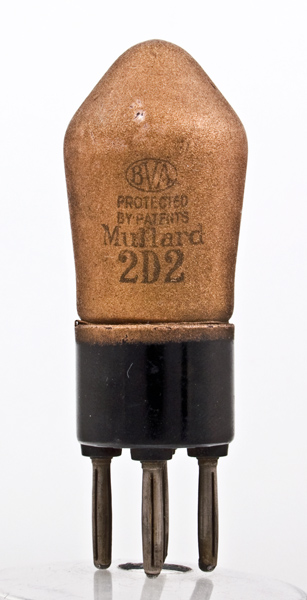

The 2D2 is a double diode introduced by Mullard in 1937 for battery radios. Indirectly heated battery valves are rare.

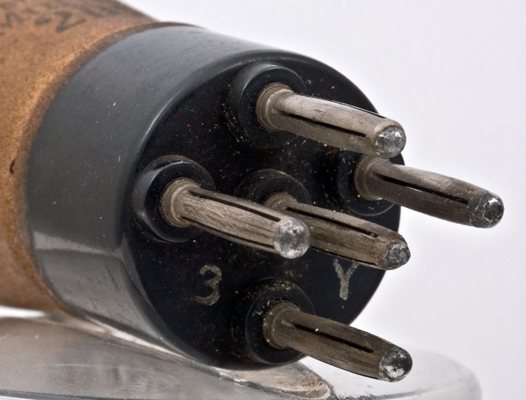

The pins have slits and the wires from the pinch are soldered at the bottom of the pin.
The balloon envelope is 28 mm in diameter, and excluding the B5 base pins is 62 mm tall.
References: Datasheet, 4048, 1040 & 1043. Type 2D2 was first introduced in 1937.



Pin Connections
B5
1
2
3
4
5
a(1)
a(2)
h
h
k



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
2.0
0.09
87.5
0.5
PDF scanned from an original document held by the museum
