CV493

Sensibly equivalent to:
6X4 CV4005 EZ90 U78

Extras ▼

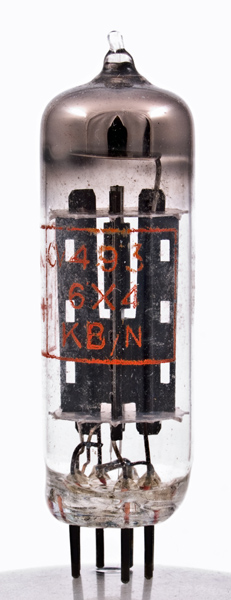

The CV493 is the commercial 6X4 HT rectifier. A common cathode is employed passing through two anodes arranged at right angles to one another.
At 325-0-325 input to the rectifier this will give an HT rail higher than is required for most domestic equipment. Use for audio amplifiers and small transmitters is most probable, or driven at 250 volts for radio receivers.

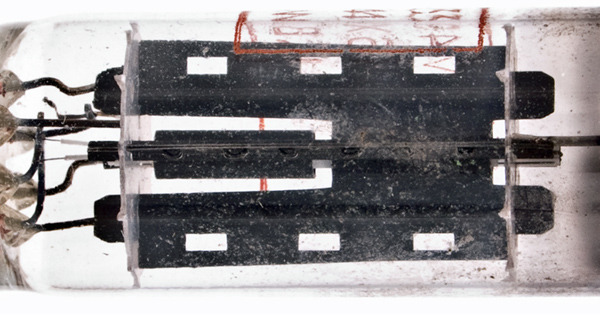

The anodes are identical in shape. One is mounted with the legs down and the other with the legs upward.
See also EZ90 from Brimar and the 12X4 12 Volt heater version.
The thin glass tube envelope is 18 mm in diameter and the length, excluding the B7G base pins, is 57 mm.
References: Datasheet & 1040.



Pin Connections
B7G
1
2
3
4
5
6
7
a(2)
-
h
h
-
a(1)
k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.6
325
70
Thanks to Frank Philipse for supplying the above PDF datasheet.
