The T10 is a battery triode designed for the HF stage(s) in a radio receiver.

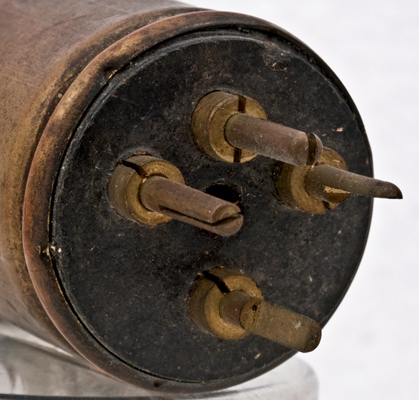

The pins are of simple split-pin construction. The collar holds the pin firm in the composition base.

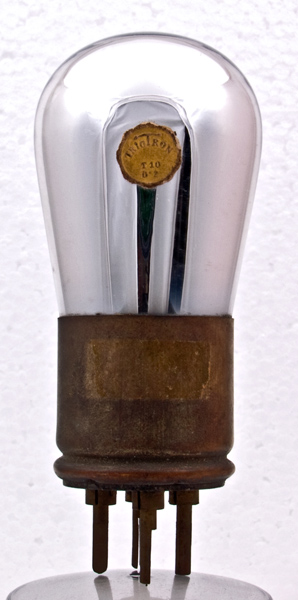

The balloon envelope is 45 mm in diameter, and excluding the B4 base pins is 88 mm tall.
References: Data-sheet, Data & 1043.



Pin Connections
B4
1
2
3
4
a
g1
f
f



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
1.8
0.2
100
-
-
18,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
