QS75/20

Sensibly equivalent to:
75B1 CV284 CV5083 GTR75M
See also:
Voltage Stabiliser Range Advert - Voltage Stabiliser Advert

Extras ▼

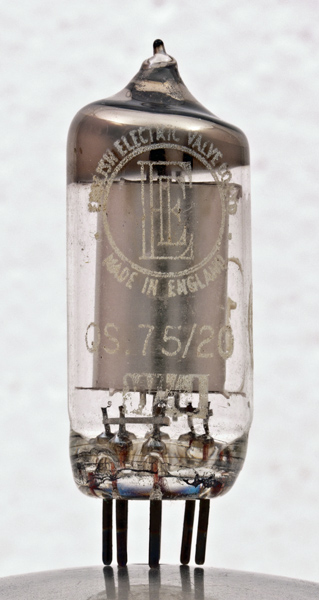

The QS75/20 is a voltage stabiliser tube. The striking voltage is 110 Volts and it will maintain a voltage of 75 Volts plus or minus 5 Volts between 2 and 20 mA.
Keith Watt reports that the GEC CV284's that he has have the separate ignition electrode. The GEC/Marconi data-sheet says that these stabilisers do not have the ignition electrode. To be safe connect pin 4 as if it is a priming anode. Connect to the other anode pins via a 15 Ω resistor.

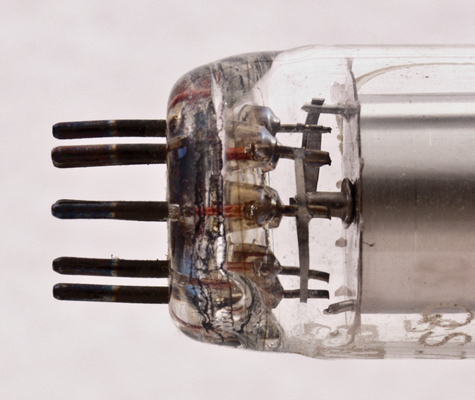

The outer bright cylinder is the cathode.
The central rod is the anode.

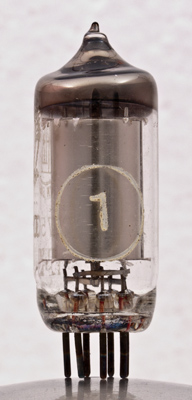

The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 45 mm tall.
References: Data-sheet. Type QS75/20 was first introduced in 1954. See also 1954 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
k
k
k
pa
a
a
a



Absolute Maximum Operating Conditions
Stabiliser
Vh
Ah
Va
mAa
-
-
110
20
Thanks to Frank Philipse for supplying the above PDF datasheet.
