CV395

Sensibly equivalent^¶ to:

G180/2M QS150/45 VX372

Extras ▼

STC G8LSD Valve Collection Other CV395 exhibits

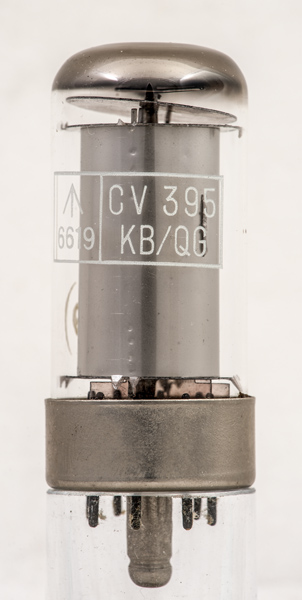

The CV395 is a voltage stabiliser tube that operates with currents through the valve of between 5 and 45 mA and maintains a voltage of 150 Volts. The prototype was the VX372. a(a) is a priming anode. The commercial version is the G180/2M from STC

The inner electrodes cannot be seen.

The wide glass tube envelope is 28 mm in diameter, and excluding the B8B base pins is 63 mm tall.

References: Data-sheet. Type CV395 was first introduced in 1950.

Pin Connections

B8B	1	2	3	4	5	6	7	8
	a	a	a(a)	k	k	k	k	k

Absolute Maximum Operating Conditions^¶

Stabiliser	Va	mAa
	150	45

PDF scanned from an original document held by the museum

Updated October 05, 2013.

shape:wide.glass.tube construction:all.glass type:voltage.stabiliser age:1950.1960 base:b8b pin:1.a pin:2.a pin:3.a(a) pin:4.k pin:5.k pin:6.k pin:7.k pin:8.k
