NF2

Sensibly equivalent to:
CF7

Extras ▼



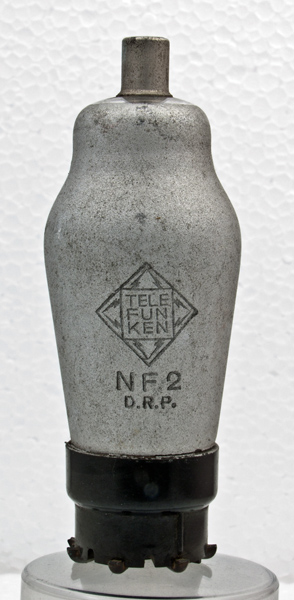

The NF2 is an HF pentode on a Ct8 base and designed for use on series heater chains.

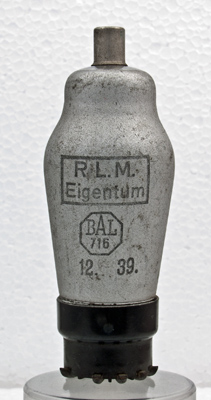

The reverse carries the BAL716 stamp showing that it was made to the German Luftwaffe standard and inspected at that particular office. All equipment made for the Wehrmacht had such a proof mark. RLM stands for Reich Luftfahrt Ministerium and was used from 1933 to 1945. The code 12 39 is probably the date code.
The classic envelope is 38 mm in diameter, and excluding the Ct8 base pins is 100 mm tall.
References: Datasheet & 3002. Type NF2 was first introduced in 1935.



Pin Connections
Ct8
1
2
3
4
5
6
7
8
tc
m
h
h
k
g3
-
g2
a
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
13.0
0.2
200
100
-2
3.0
1.1
2.0M
2.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
