Super-PowerSensibly equivalent¶ to:85-mills
|
|
|

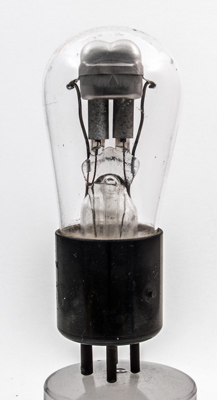

This exhibit is a Majestic Super Power gas rectifier. Radiomuseum describe it as a full wave rectifier, if it is then it is a cold cathode device.![](../pics/aaa1552a.jpg)

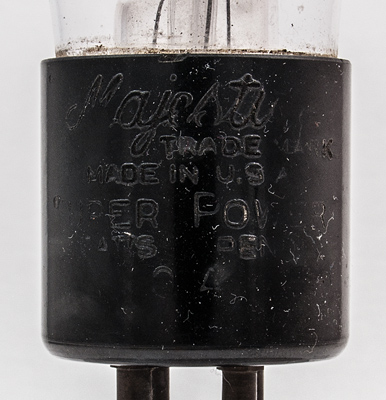

The base with the printed details.![](../pics/aaa1552b.jpg)

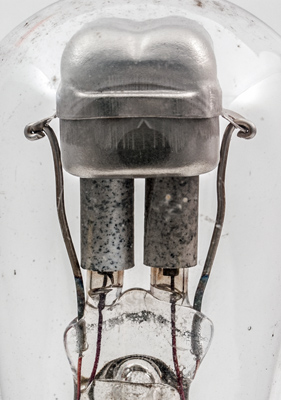

The two leads passing into the box from the pinch are well insulated by glass tubes.![](../pics/aaa1552c.jpg)
A close-up of the box and pinch.![](../pics/aaa1552d.jpg)

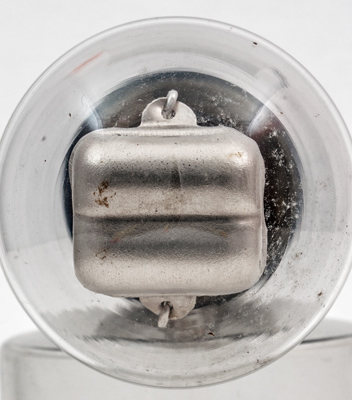

The top view of the box.The balloon envelope is 44 mm in diameter, and excluding the UX4 base pins is 98 mm tall.Reference: 3002. |
Updated October 28, 2014.
|
|
