PCL82

Sensibly equivalent to:
16A8 30PL12
See also:
Peco PCL82 Box

Extras ▼

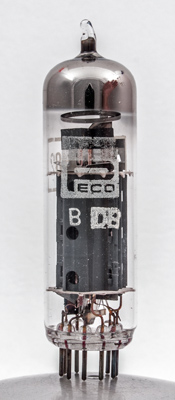

The PCL82 triode pentode is a typical audio output and/or frame oscillator and output stage valve. Peco looks to be a reseller that was active during the peak of the valve television era.
The double valve enabled the demodulated audio signal to be amplified and applied to the speaker by using the minimum number of components and printed circuit board space.
The Peco logo.
The triode section is the same height as the pentode section. Both control grids are fitted with copper supports and heat radiating fins.
The thin glass tube envelope is 20 mm in diameter and excluding the B9A base pins, is 71 mm tall.
References: Datasheet & 1040. Type PCL82 was first introduced in 1955.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g1(t)
k,g3,s
g1
h
h
a
g2
k(t)
a(t)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pdiss
Pout
D
16
0.3
170
170
-11.5
41
7.5
16k
7.5
7.0W
3.3W
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 29, 2015.
