Type 6AN8A is a triode-pentode with a defined warm-up time for use on series heater chains. The pentode section is used as a video amplifier or reactance valve while the triode performs variously as a phase detector, gating valve, oscillator or phase splitter.

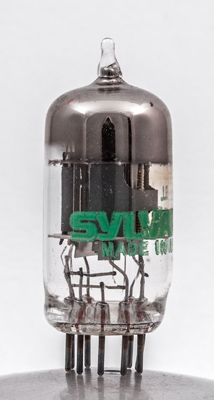

The Sylvania name. Seen beyond the side strap of the anode are the two central grids and the beam forming plates.

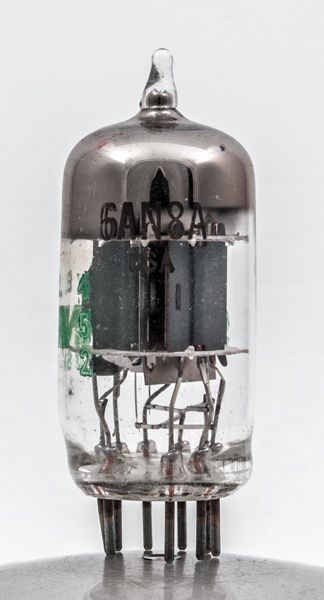

The small triode is full height and separated from the pentode by a bright electrostatic screen.

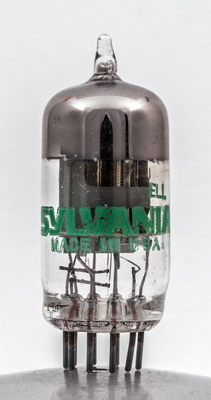

The thin glass tube envelope is 21 mm in diameter and, excluding the B9A base pins, is 47 mm tall.
References: Datasheet. Type 6AN8A was first introduced in 1954.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(t)
g1(t)
k(t)
h
h
a
g2
g1
k,s



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
mAa
mAs
ra
rk
gm
6.3
0.3
200
150
9.5
2.8
300k
180
6.2



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
μ
200
-6
13
5750
3.3
19
Thanks to Frank Philipse for supplying the above PDF datasheet.
