U107



Extras ▼



The GEC U107 is a half wave rectifier designed for series heater chains operating at 100 mA as was found in domestic AC/DC radios and some televisions in the early 1950s.

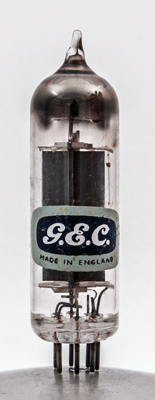

The GEC logo. M-OV valves were branded GEC for professional applications with Marconi and Osram being the consumer brands.

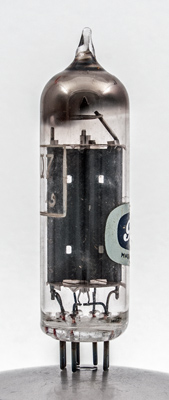

The folded and pressed anode is stitched together.

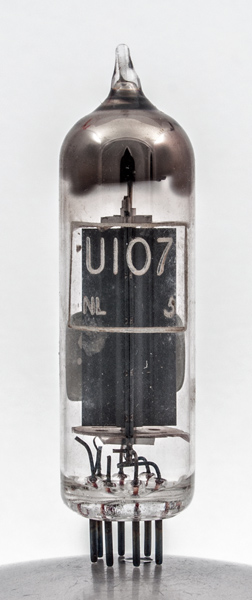

The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 62 mm tall.
References: Data-sheet, 1040 & 1043. Type U107 was first introduced in 1952. See also 1952 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
h
a
k
nc
nc
a
h



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
40
0.1
250
90.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
