8136

Sensibly equivalent to:
6DK6

Extras ▼

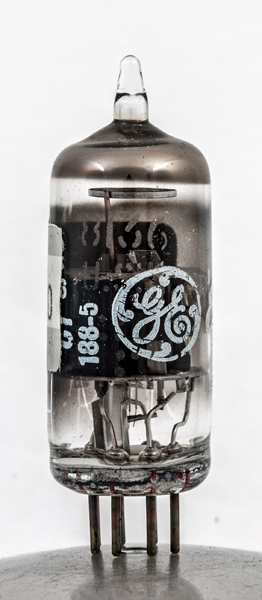

The 8136 is a beam tetrode from the American General Electric corporation but is referred to as a pentode.
This exhibit carries a Tektronix label and was thus deemed suitable for inclusion in one of the best pieces of test equipment made.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins is 47 mm tall.
Reference: Datasheet. Type 8136 was first introduced in 1958.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2
g3,s



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
330
165
-6.5
10.8
2.9
-
9.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 19, 2018.
shape:thin.glass.tube construction:all.glass type:beam.tetrode age:1960.1975 base:b7g heater:6.3v pins:7 pin:1.g1 pin:2.k pin:3.h pin:4.h pin:5.a pin:6.g2 pin:7.g3.s
