STR4B32

Sensibly equivalent to:
4B32

Extras ▼

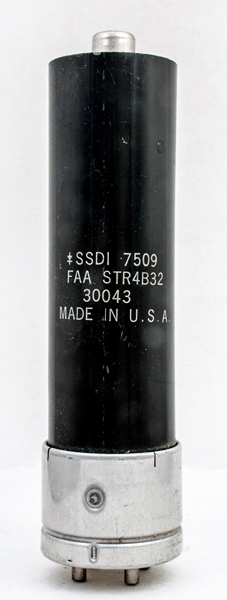

The 4B32 is a Xenon filled high voltage power rectifier. The STR4B32 is a silicon replacement. There is no filament in this solid state version.

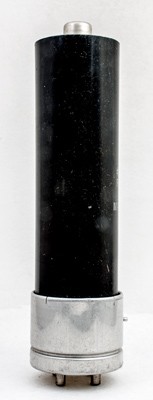

The reverse is plain.
The wide glass tube envelope is 43 mm in diameter and, excluding the base pins, is 169 mm tall.
Reference: Datasheet.



Absolute Maximum Operating Conditions
Rectifier
Va
10,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 12, 2020.
shape:wide.glass.tube type:rectifier.hw base: pins:4 pin:
