ITK2-1



Extras ▼

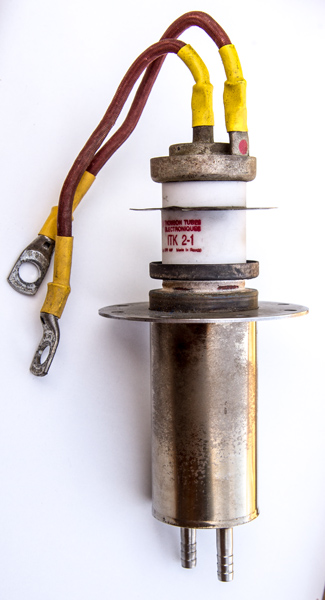

The ITK2-1 is a directly heated water cooled power triode. The design use is for industrial RF heating. The operating frequency is up to 1.5 MHz. The anode dissipation is 1.5 kW and the output in CW mode is 5 kW.

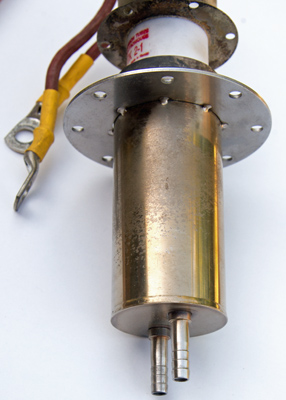

The water jacket is 52 mm in diameter and 108 mm long.
The thoriated tungsten heater connects via the thick wire leads. The control grid connects via the small external disc.
The wide ceramic envelope is 40 mm in diameter and, excluding the base leads, is 175 mm tall.
Reference: Data-sheet.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
6.3
35.0
7,200
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated August 03, 2020.
construction:pinch type:triode base: heater:6.3v pin:
