VX7076

Sensibly equivalent to:
6AL5
See also:
Brimar FM Valves Advert - Brimar 6AL5 Advert - Brimar 6AL5 Advert

Extras ▼

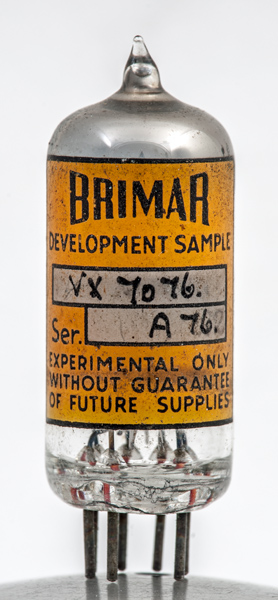

The VX7076 is the prototype for the 6AL5 miniature all glass double signal diode.
These diodes were specifically designed for vision and sound detection in television receivers. Additionally they are recommended for limiting and DC restoration.

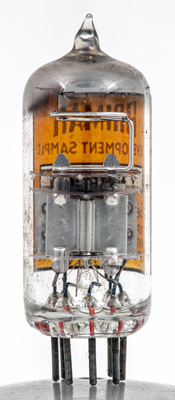

The characteristic structure of the 6AL5 with two bright diodes separated by a screen.

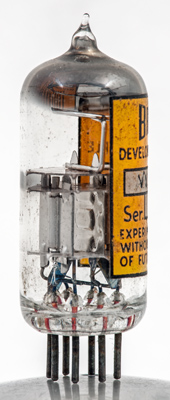

The anode fixed into the supporting mica disc with tabs. The heater is a double helix to cancel the AC magnetic fields.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 45 mm tall.
References: Data-sheet & 1040.



Pin Connections
B7G
1
2
3
4
5
6
7
k(1)
a(2)
h
h
k(2)
s
a(1)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
150
9
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 21, 2020.
shape:thin.glass.tube construction:all.glass type:double.diode age:1940.1950 base:b7g heater:6.3v pins:7 pin:1.k pin:2.a pin:3.h pin:4.h pin:5.k pin:6.s pin:7.a
